Circuit Breaker Applicab1e scope and purpose

• Short -circuit protection
• Over-load protection
• Isolation protection

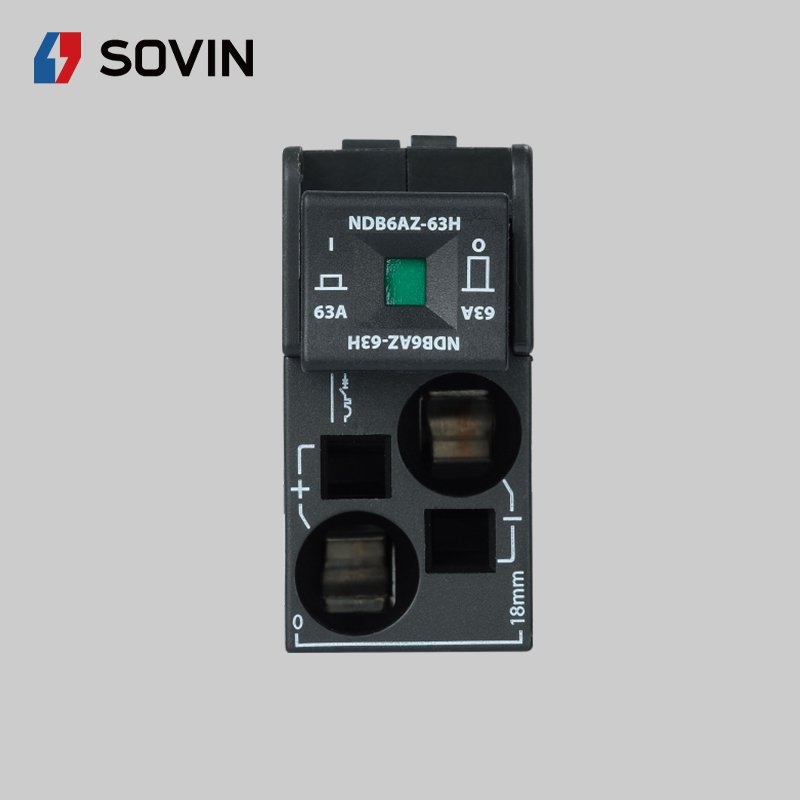

    NDB6AZ-63H series circuit breakers products are mainly used in telecommunications equipment rooms or communication cabinets,as isolation,short circuit and overload protection for cabinets,equipment rooms or downstream subscriber lines.

Specification:

• Rated voltage(V):DC80
• Rated limit breaking capacity(KA):10
• Rated current(A):4,6,10,16,20,25,32,40,50,63
• Electriccal endurance(times):4000
• Mechanical life(times):6000
• Plug depth(mm):23~25
• Strpping length(mm):0.75~6mm2:12~18 10mm2:14~18 16mm2:18
• Insertion frames force(N):≤80
• Pull out frame force(N):≤75
• Circuit breaker insertion and removal times:200
• Clod pressed end Length(mm):0.75~6mm2:10~16 10mm2:12~16 16mm2:16

 Working conditions:

• Can withstand the effects of humid air(Temperature @+40℃ and above, air relative humidity does not exceed 50%,allows greater relative humidity at lower temperatures,for example,95%@+20℃)
• Can withstand salt spray for 48 hours
• In a medium without explosion hazard, and the medium does not have enough gas and conductive dust to corrode metal and destroy insulation
• In places where there is no rain or snow
• Height:≤2000m,if you want to apply it more than 2000m, you must refer to Miniature

Packaging and storage:

• Maximum number of package:8/box, packed in boxes:24 boxes/box, it should stored in a warehouse where air circulation and relative humidity is not more than 80%, temperature is not lower than -40℃ but not higher than 80℃. Store in the warehouse without acid,alkaline or other corrosive gases in the surrounding air.
• Under the above conditions, the storage period shall not exceed 1 year from the date of manufacture.
